Brass graphometer signed Canivet à la Sphère à Paris dated 1772

Brass graphometer signed Canivet à la Sphère à Paris dated 1772



length 24.3 cm x height 12.7 cm




Canivet à la Sphère

Country of manufacture


Categories: Scientific, Surveying Instruments & Mining

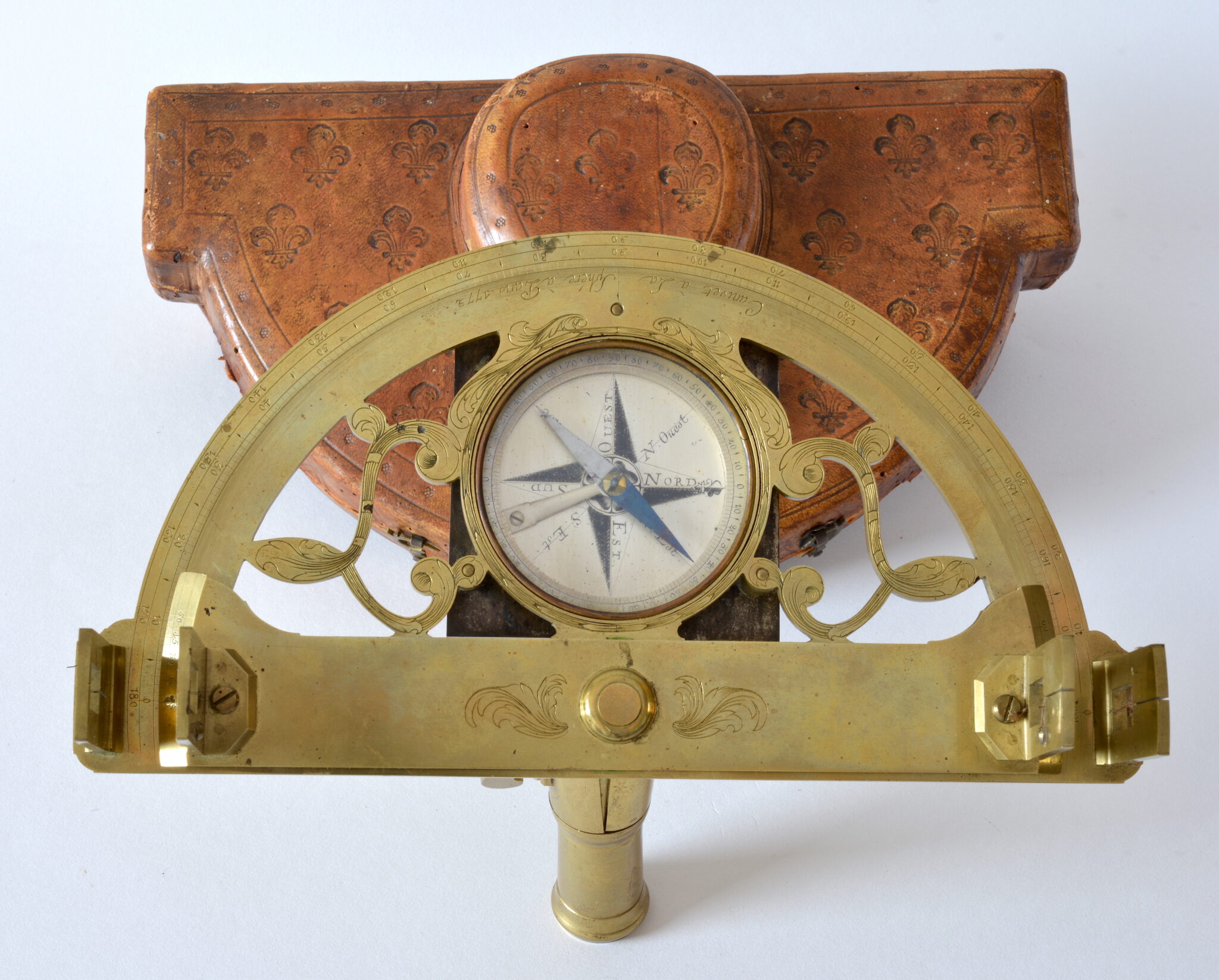

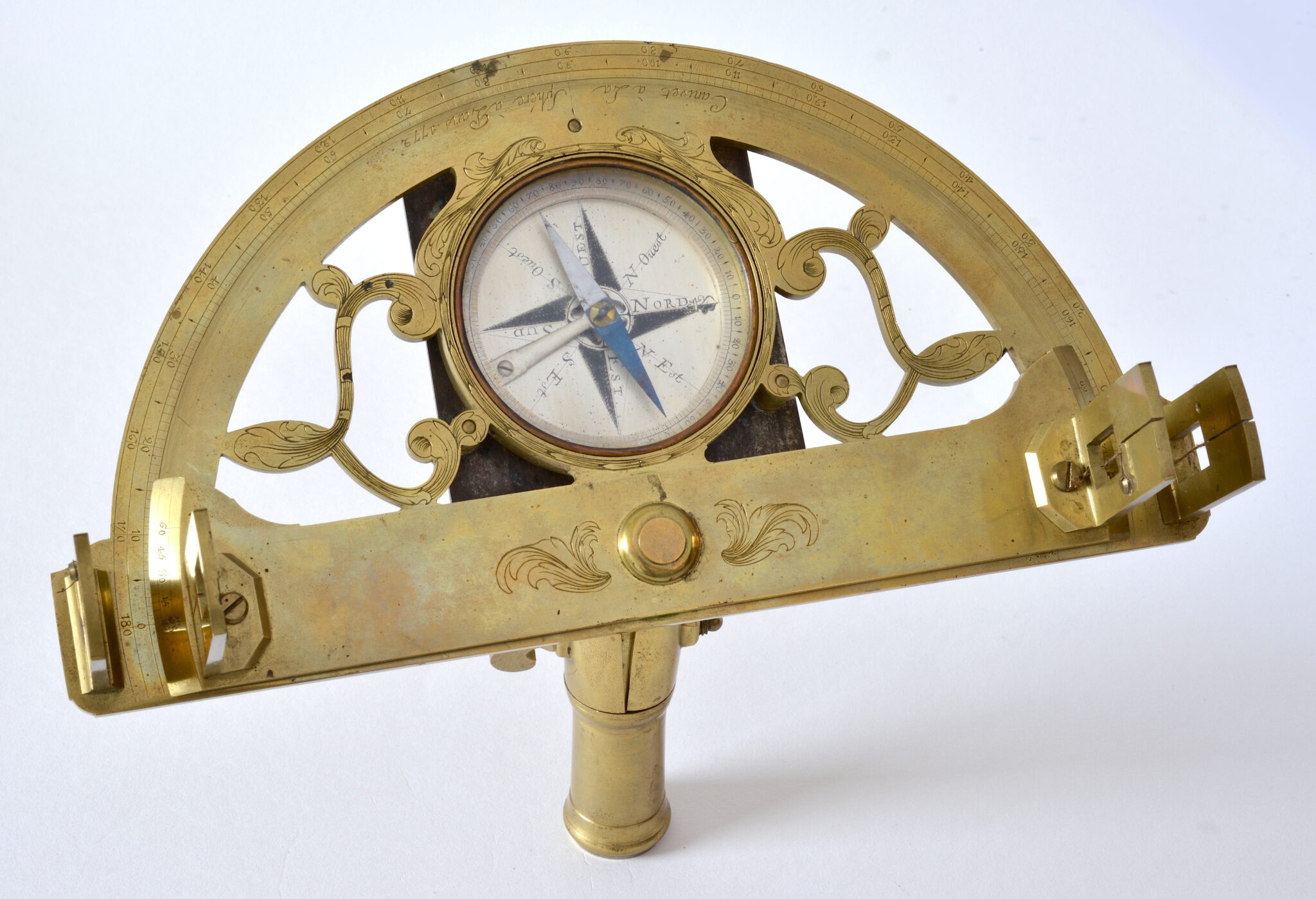

Brass graphometer signed “Canivet à la Sphère à Paris 1772”.

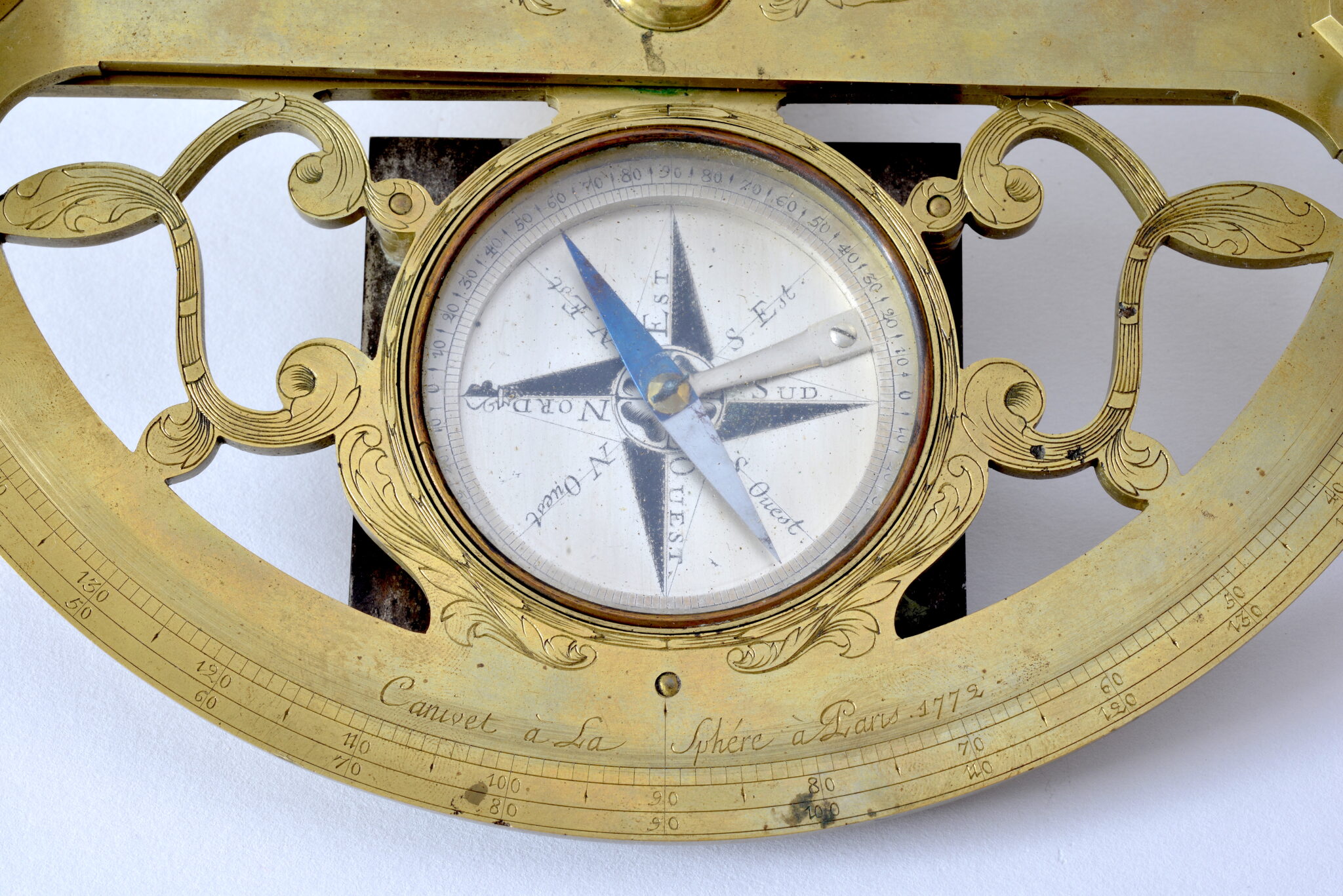

It features an openwork brass semi-circle with two scales from 0 to 180 degrees, as well as two sights, and a central compass with a silvered bottom engraved with a 4-direction compass rose and four additional directions.

In the center of the compass, a steel pivot supports a partially blued steel needle with a brass pivot that locks with a screw system. All around the compass rose are degree graduations from 0 to 90 repeated four times, topped by a glass.

A movable arm, decorated with two small acanthus leaves, is attached to the main plate below the compass and features two sights.

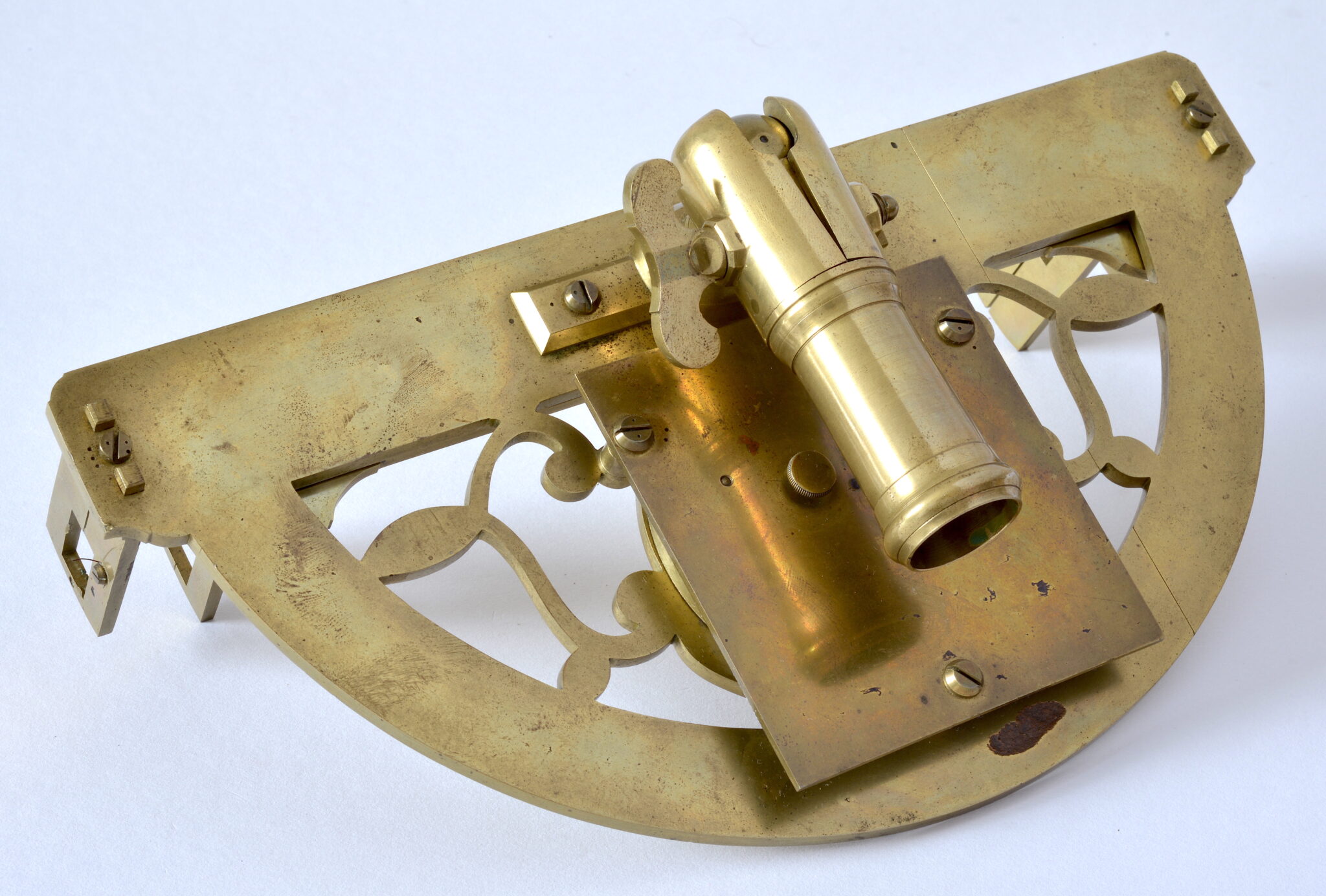

The main plate is fixed on a ball-and-socket joint set into its support tube with its butterfly screw.

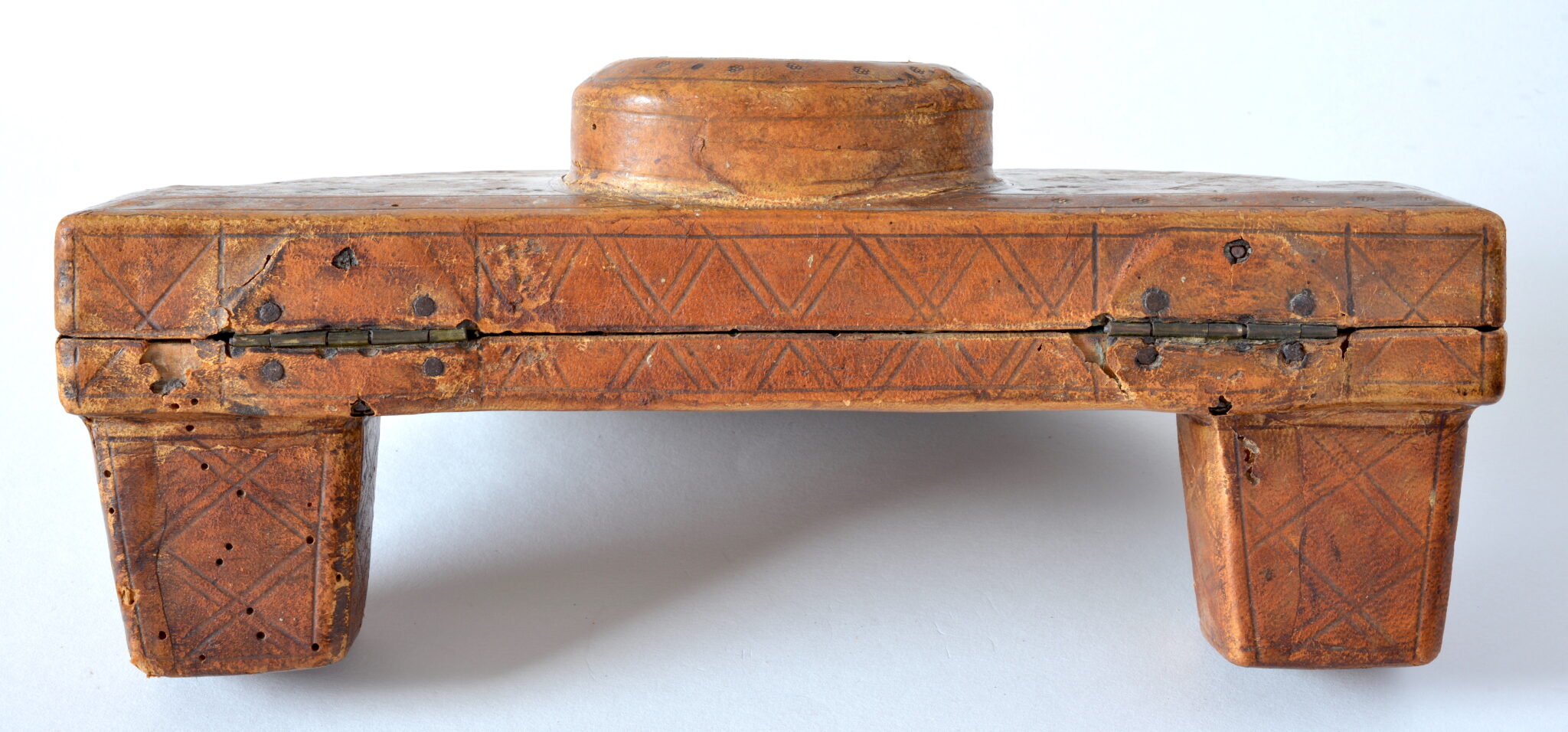

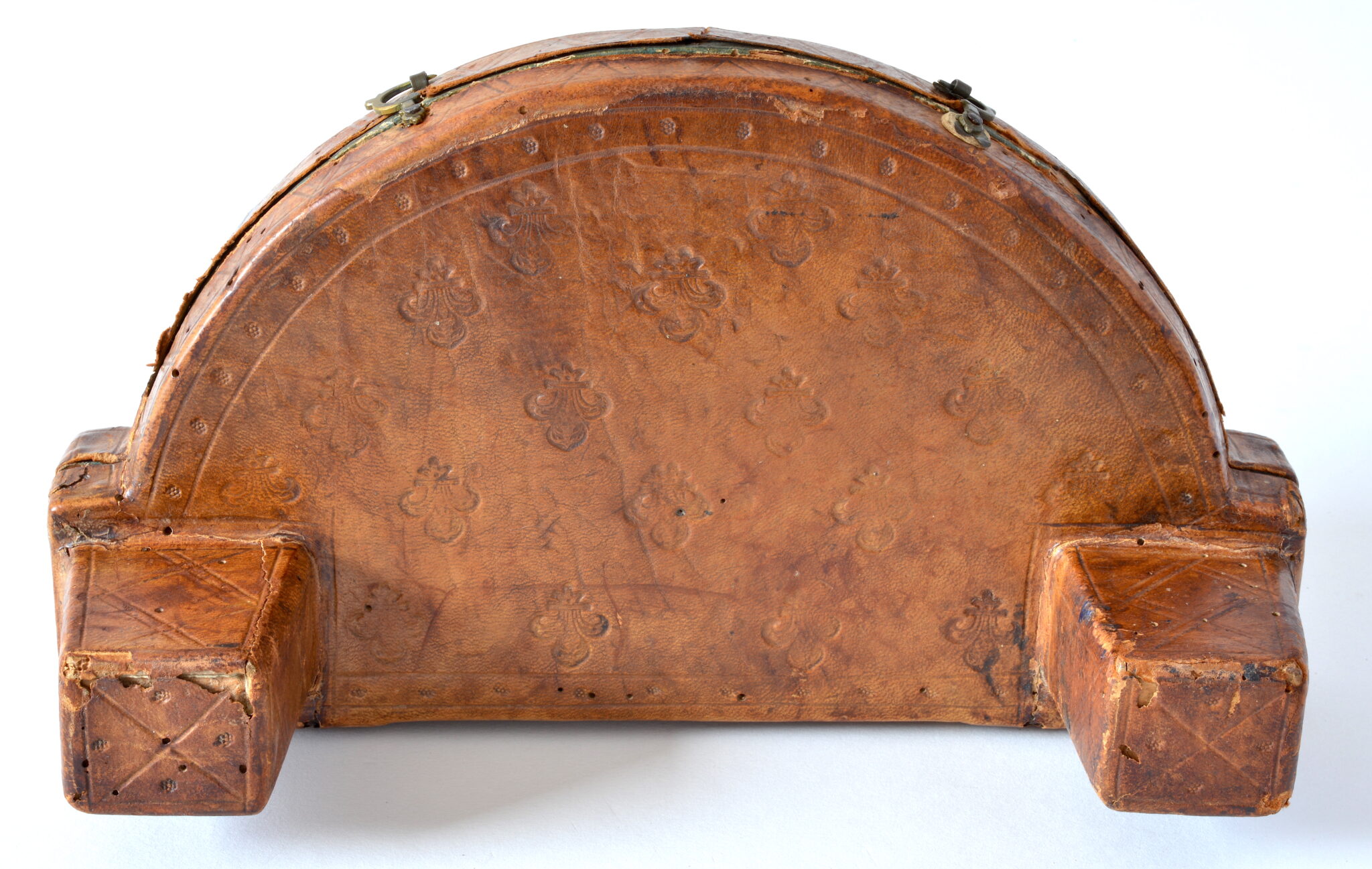

Original wooden case covered in brown leather with fleur-de-lis decoration, inside lined with green fabric.

Dimensions (graphometer): length 24.3 cm x height 12.7 cm.

Paris dated 1772.
