PRECISION SPHEREOMETER

PRECISION SPHEREOMETER

Stock Number: 6401

$695.

For sale, antique French 19th century spherometer to measure the sphericity of a surface. A sophisticated mechanical instrument.

Dimensions

6-1/2 inches (16.5 cm) tall

Circa

c. mid-19th century

Country of manufacture

France

Categories: Scientific, Technology

Description

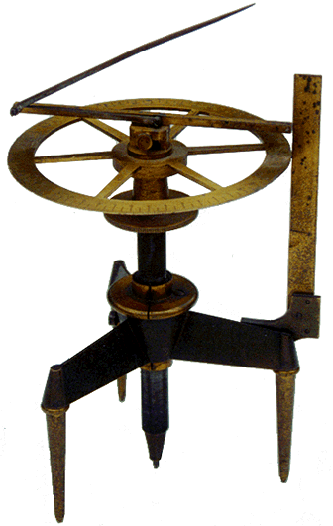

PRECISION SPHEREOMETER, French, mid-19th century. Standing 6-1/2″ tall, made of brass with a steel lead screw, the spherometer has three tapered legs, central pin on the fine thread precision screw, and “micrometer” readout with vertical scale graduated every half-millimeter, and circular scale (on a six-spoked ring) graduated every 0.001 millimeter (!) The central pin presses against an upper double lever arm with very high amplification factor, so that repeatable positive contact is reliably indicated. The instrument thus measures the central height, and therefore the sphericity, of a surface. Condition is fine noting nicks around the scale edge, and crazing to the original lacquer finish. The most sophisticated early mechanical spherometer we have seen.
