Wooden Revolver Single Microscope, ca. late 17th century

Wooden Revolver Single Microscope, ca. late 17th century

Stock Number: FG_22036

Sold

European (Italian?), probably late 17th-century wooden single microscope with revolving samples stage in decorated embossed leather over wood etui.

Dimensions

Length: 18.5 cm

Countries of manufacture

Other, Germany, France

Categories: Scientific, Microscopy, Mineralogy & Gemmology, Natural history

Description

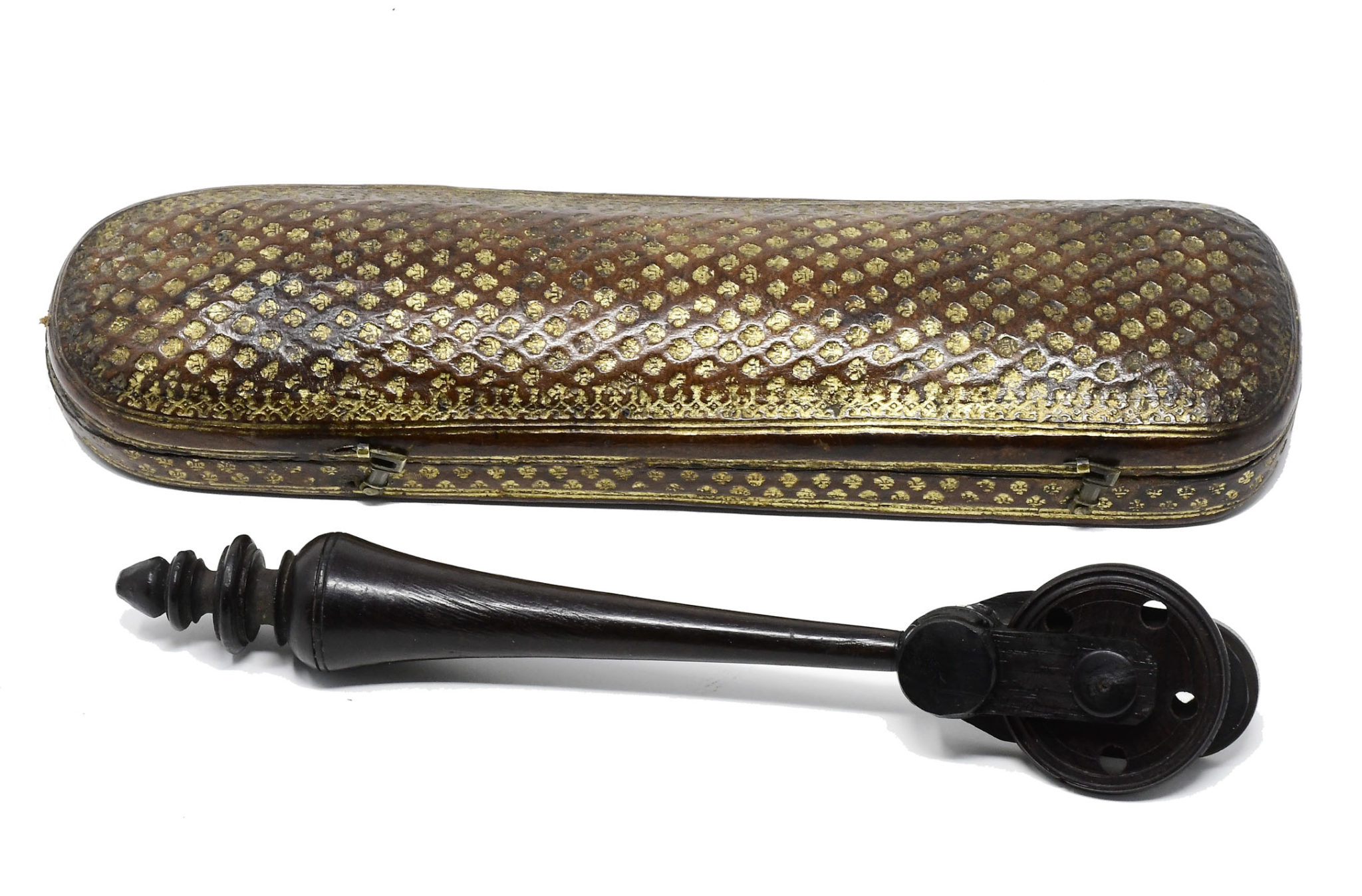

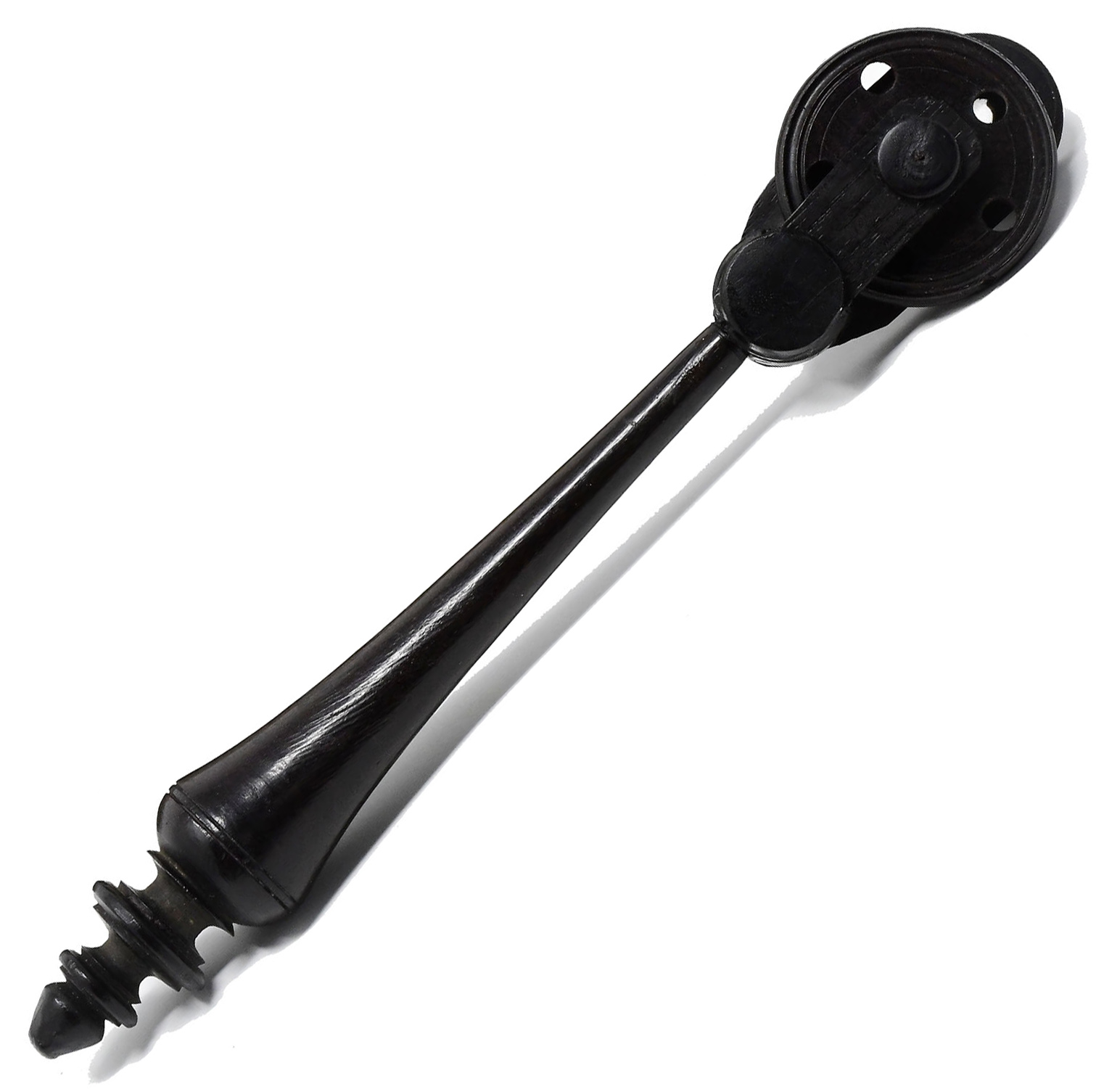

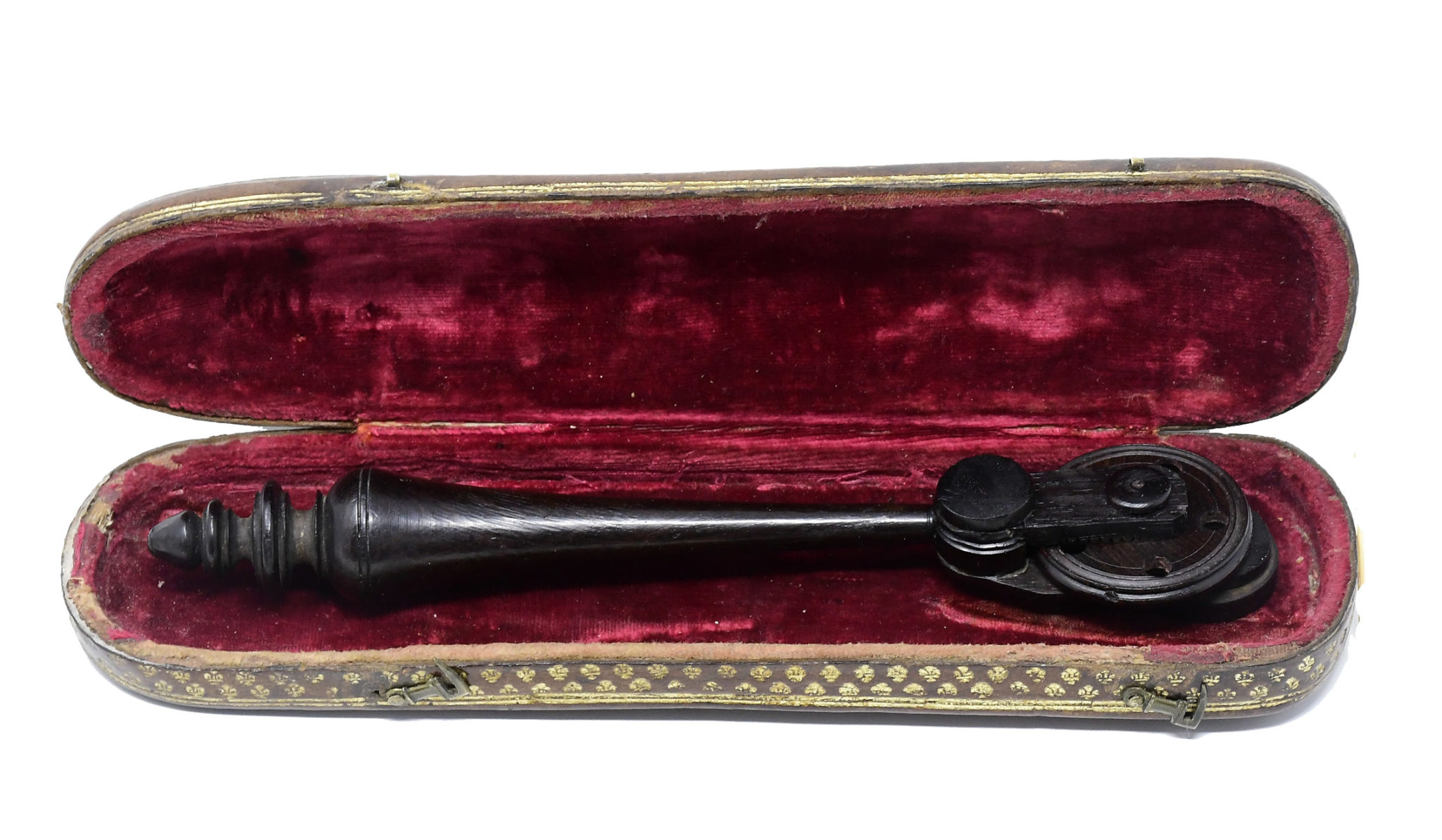

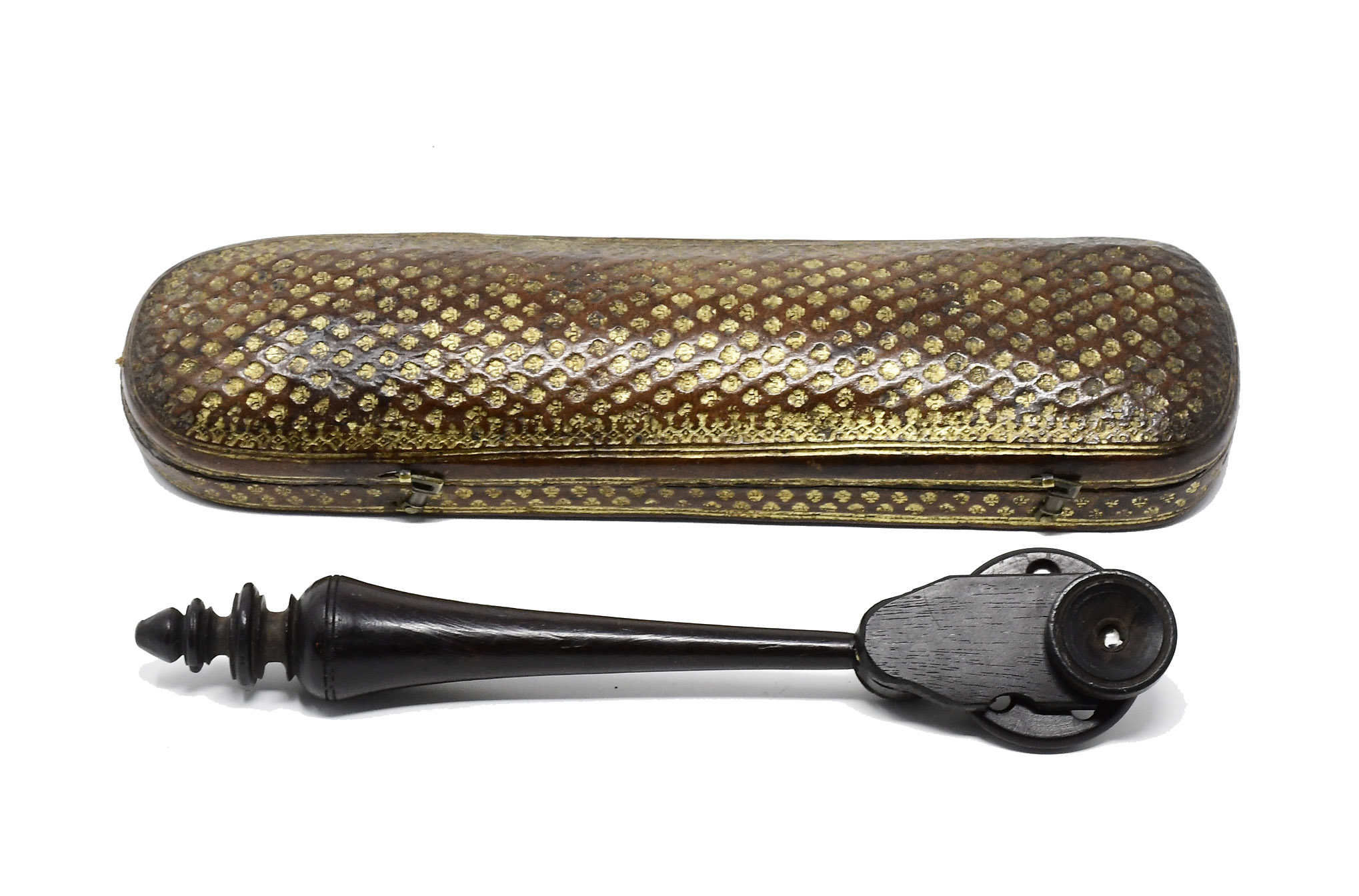

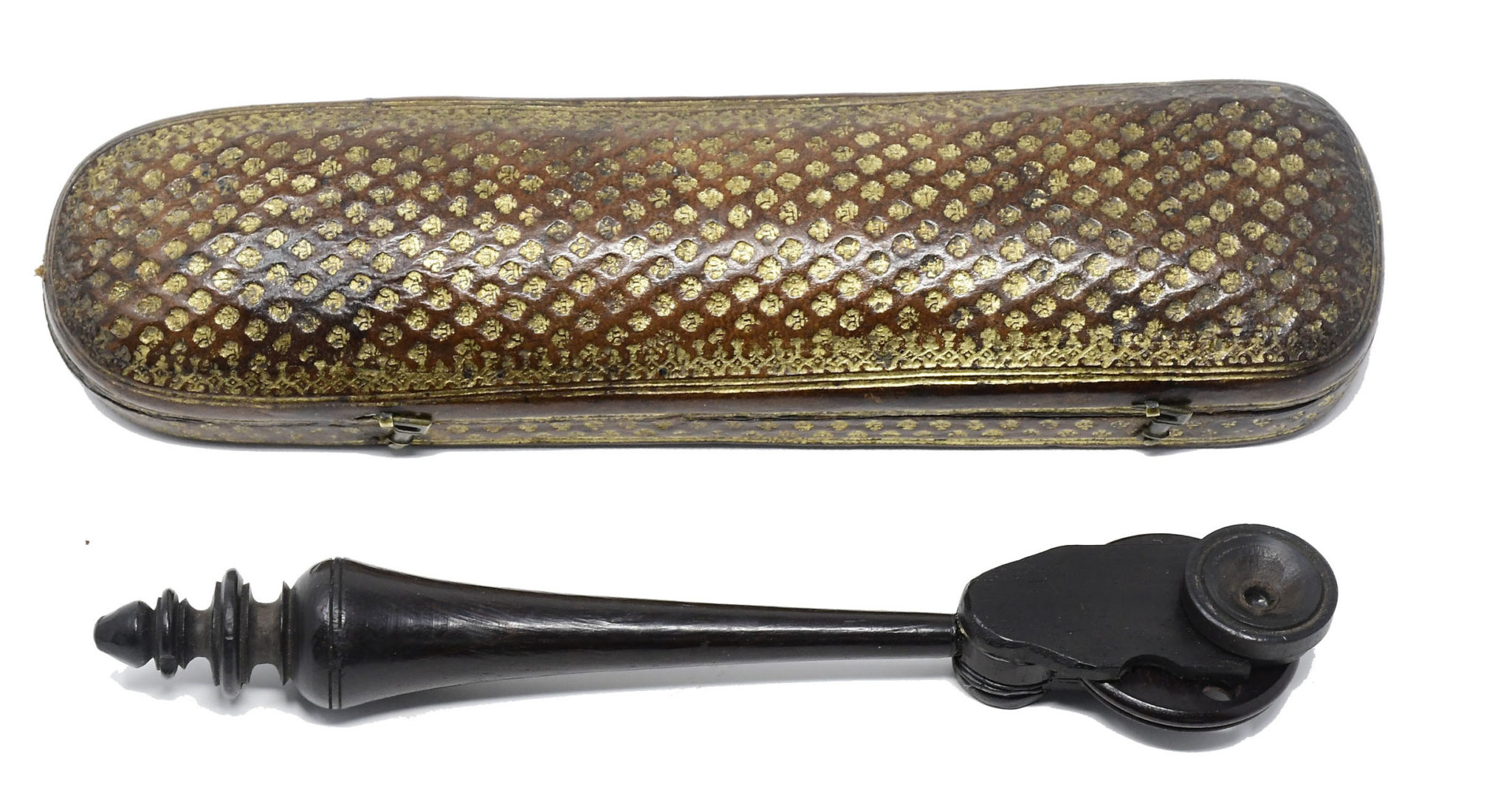

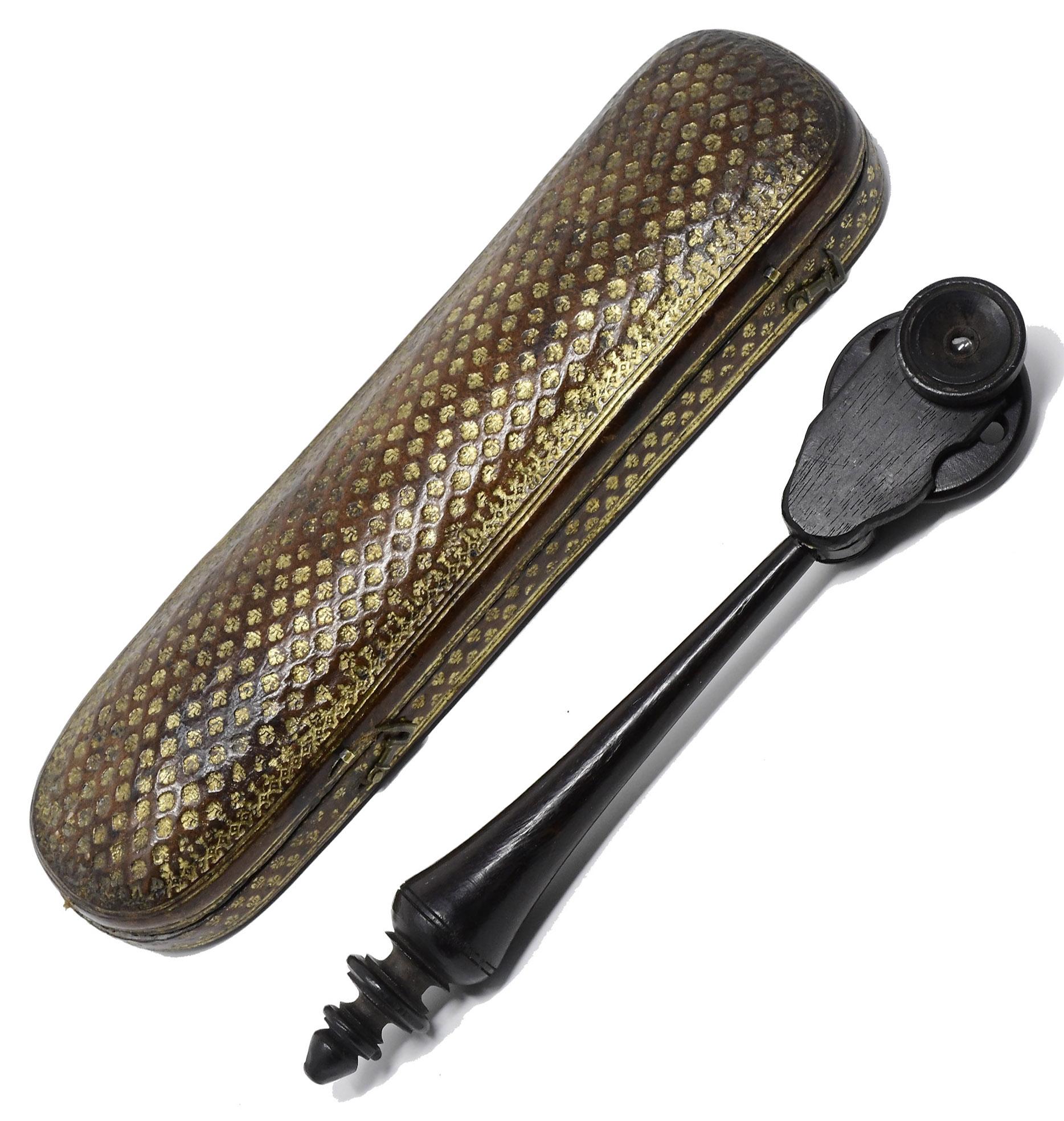

Purchased in Italy, this continental European (Italian, French or Dutch), probably late 17th-century wooden single microscope comes with an oval case of wood covered in tan leather embossed with gold motifs. Objects to be viewed were held in the five holes within the circular revolving plate. The plate can be turned to bring each object into view in front of the bi-convex little lens under the eyecup. Unlike some other microscopes of this general design, the lens was placed in fixed focus from the specimen wheel. The small holes in the revolver and the high magnification of the lens suggest that this microscope was designed to observe Infusoria in water drops. The instrument fits into a shaped leather over the wood case with gold tooling on the outside and red inner velvet coating on the inside.

The instrument is 18.5 cm long. It is made of lignum vitae

Although this device has no equivalent in design and method, it is reminiscent of some Dutch, French, and German Lands’ microscopes designed by makers such as Christian Huygens, Cosmus Conrad Cuno, Michael Butterfield, Nicolas Bion, Louis Chapotot, and Depovilly.
