Dip Circle (Dip Needles)

(Terrestrial magnetism)

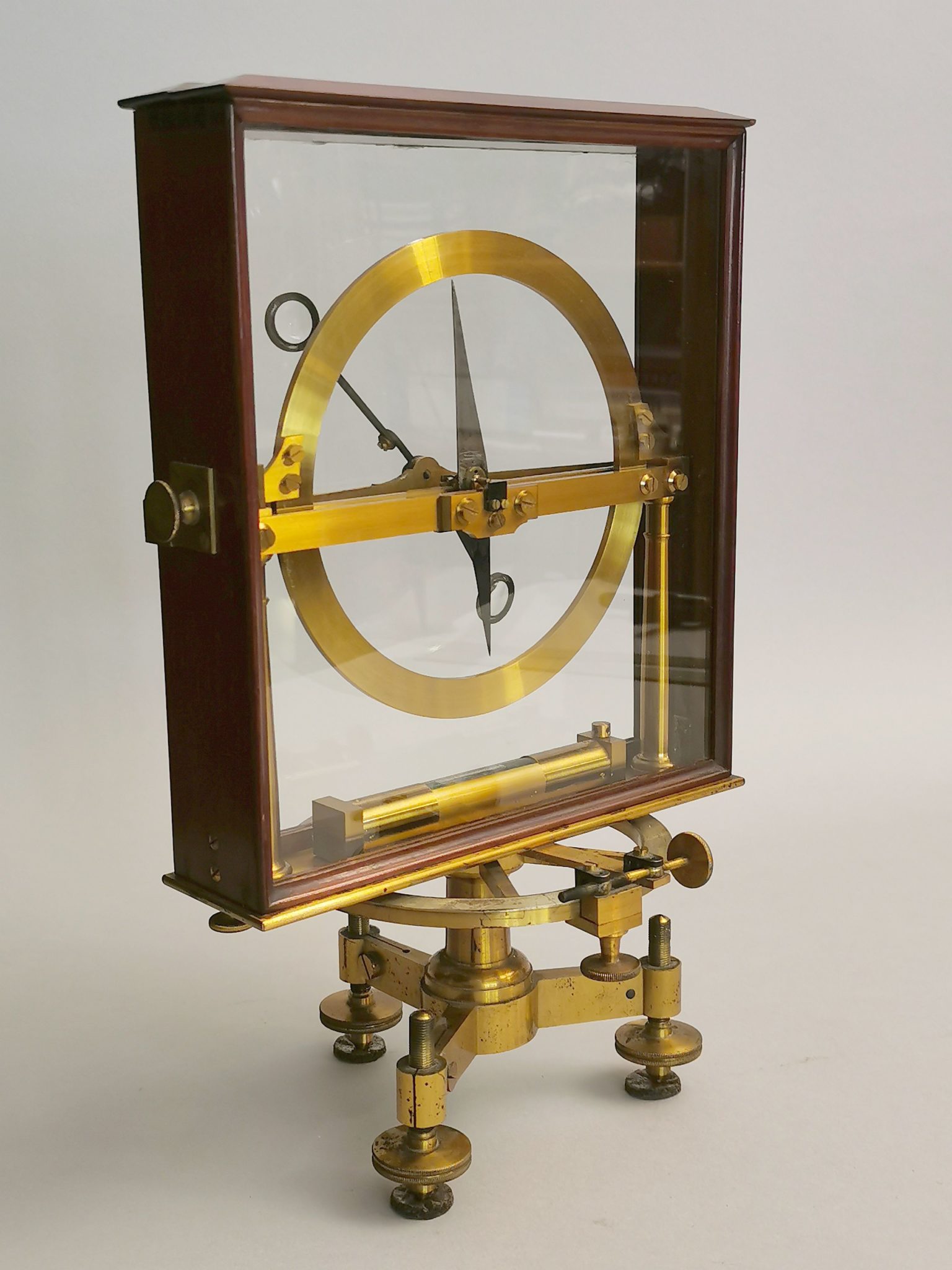

Unsigned but really beautiful Dip Circle in wonderful condition dimension: 34cm high

Wooden glass case 23,5x20,5cm

Country of manufacture

France

Categories: Scientific, Barometers & Meteorology, Physics & Chemistry

Description

Rare and Beautiful 19th century

Dip Circle (Dip Needles)

(Terrestrial magnetism)

Unsigned (French?)  but really beautiful  Dip Circle  in wonderful condition

dimension: 34cm high

Wooden glass case 23,5×20,5cm

With this device the magnetic inclination is determined,  the angle that the direction of the earth’s magnetic field forms with the plane of the horizon.

A  magnetic needle can rotate in a vertical plane within a graduated circle. The latter is fixed to a brass support which, in turn, can rotate horizontally. The support is equipped with a spirit level and feet with leveling screws for precise positioning in the horizontal plane.

For a precise measurement it is first necessary to determine the magnetic meridian plane of the place. This is achieved by rotating the support until the needle is positioned vertically (in this position the horizontal component of the earth’s magnetic field is null) and then carrying out a second rotation of 90 degrees, to arrange the graduated circle in the plane of the magnetic meridian thus determined. . The magnetic inclination can be read on the graduated circle.

The instrument is enclosed in a wooden and glass case, through which the measurements are made; in this way it is preserved from the perturbations of the external environment.

———————————————————-

Georg Hartmann first discovered dip angle in 1544, when he noticed the needle on a compass dipped towards the north hemisphere. Rather than explore this phenomenon, Hartmann sought ways to eliminate it. However, Robert Norman around 1576 investigated dip angle further and in 1581 described in print a device to measure this phenomenon.

Early dip circles were not accurate and gave poor results. Over the next 300 years many improvements were made, including reducing the friction between the needle and its pivot and encasing the circle in glass. Between the late 18th century and late 19th century the design approached its peak. Improvements which made the dip circle a practical aid for polar navigation were made by Robert Were Fox FRS, who developed in the 1830s the first dip circle that could be used on board a moving ship. Another important improvement to the instrument was developed in the 1830s by the Dublin physicist Humphrey Lloyd, who devised a way of attaching a magnetic needle at right-angles to the dip needle in order to measure the intensity of force (by seeing the extent to which the right-angle needle deflected the dip-needle).

Feel free to ask for futher photos and information

Thanks
